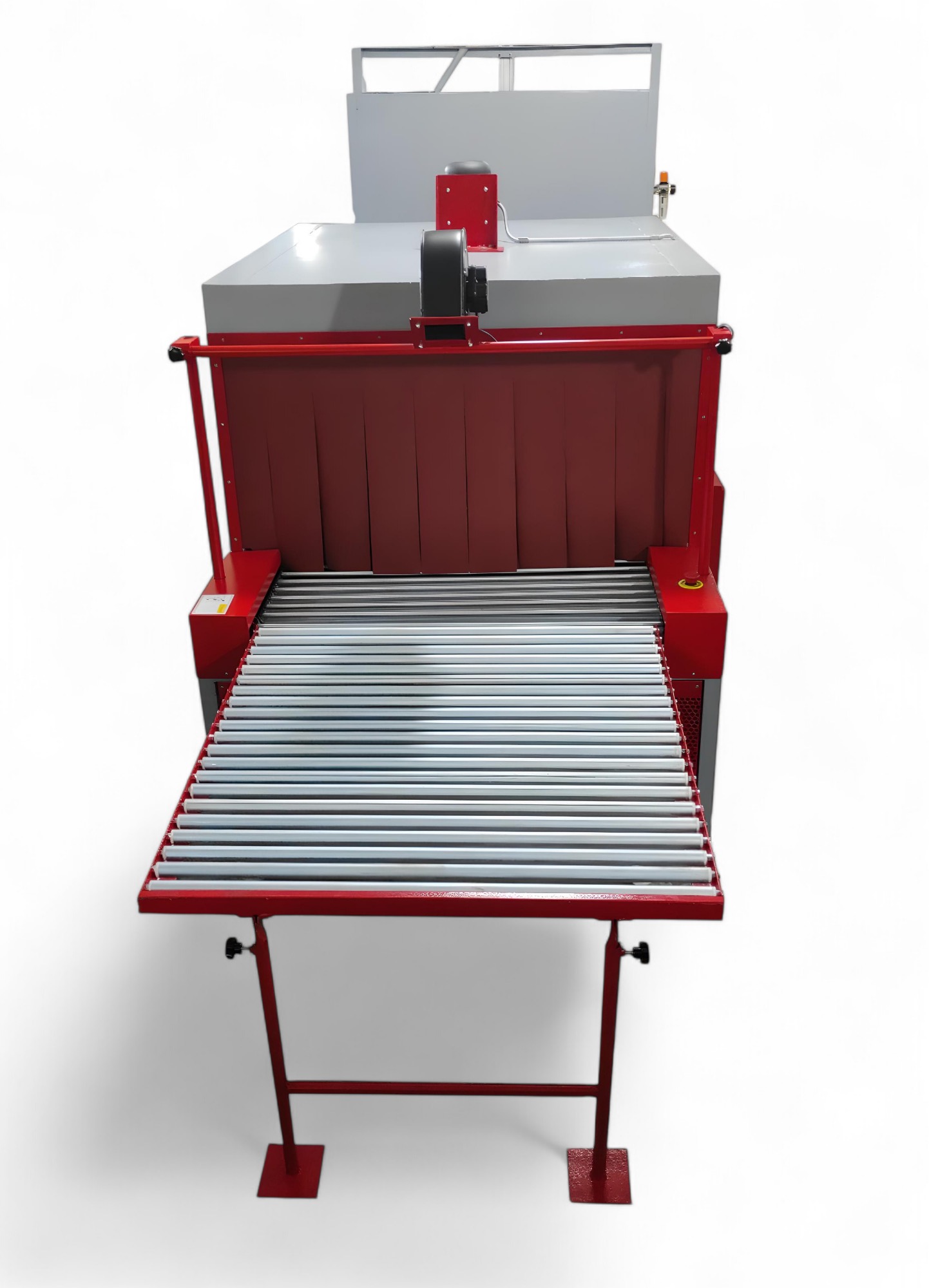

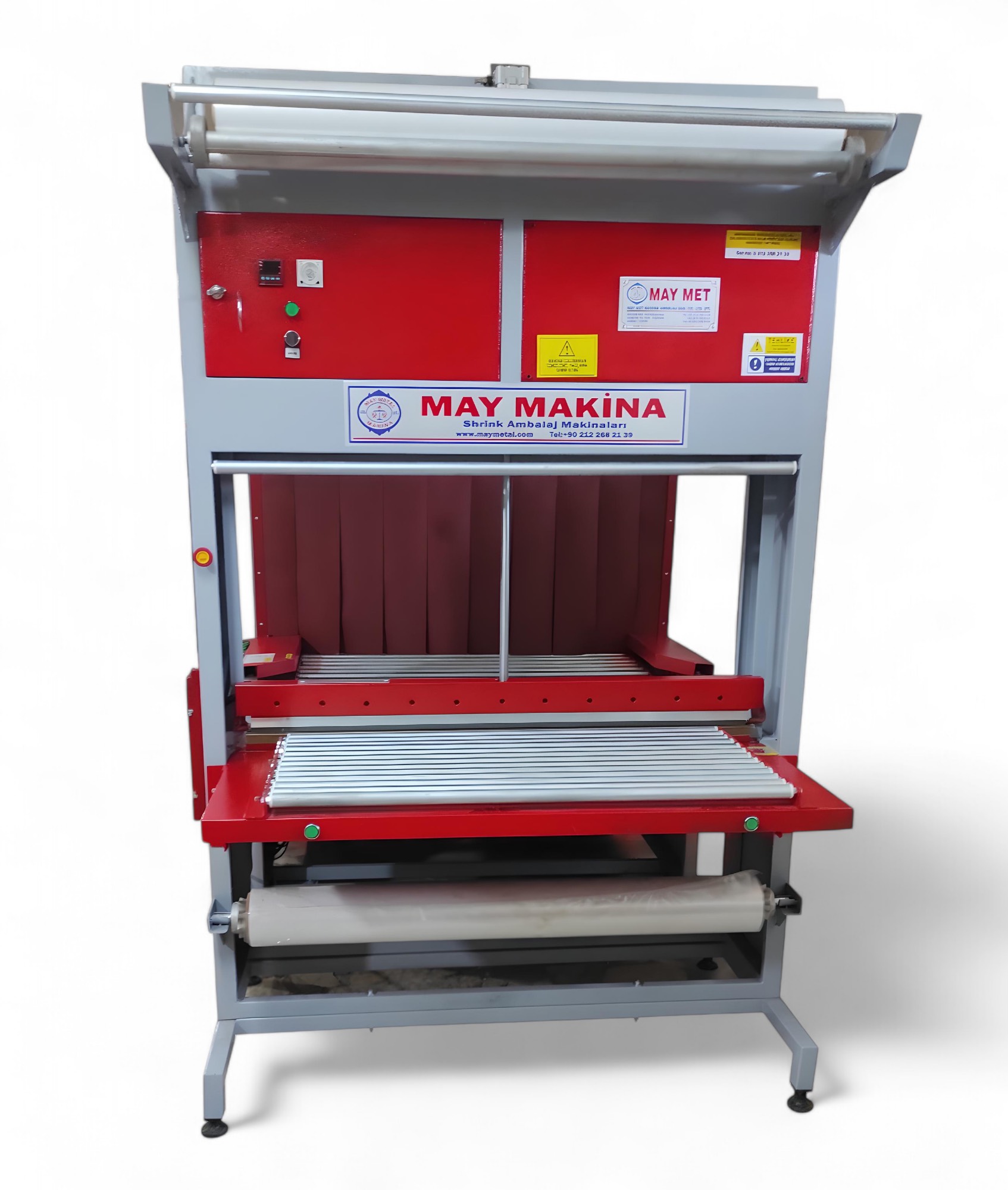

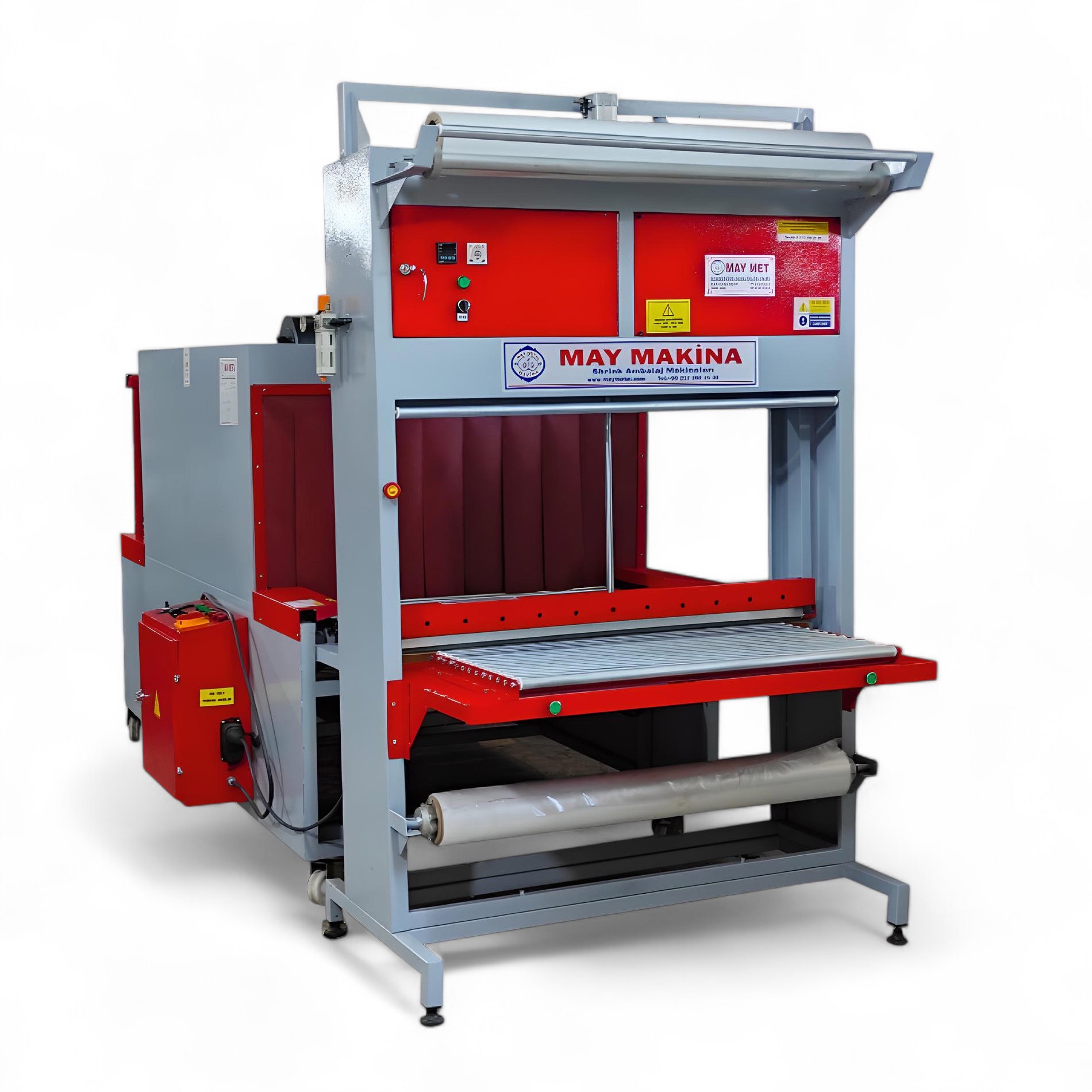

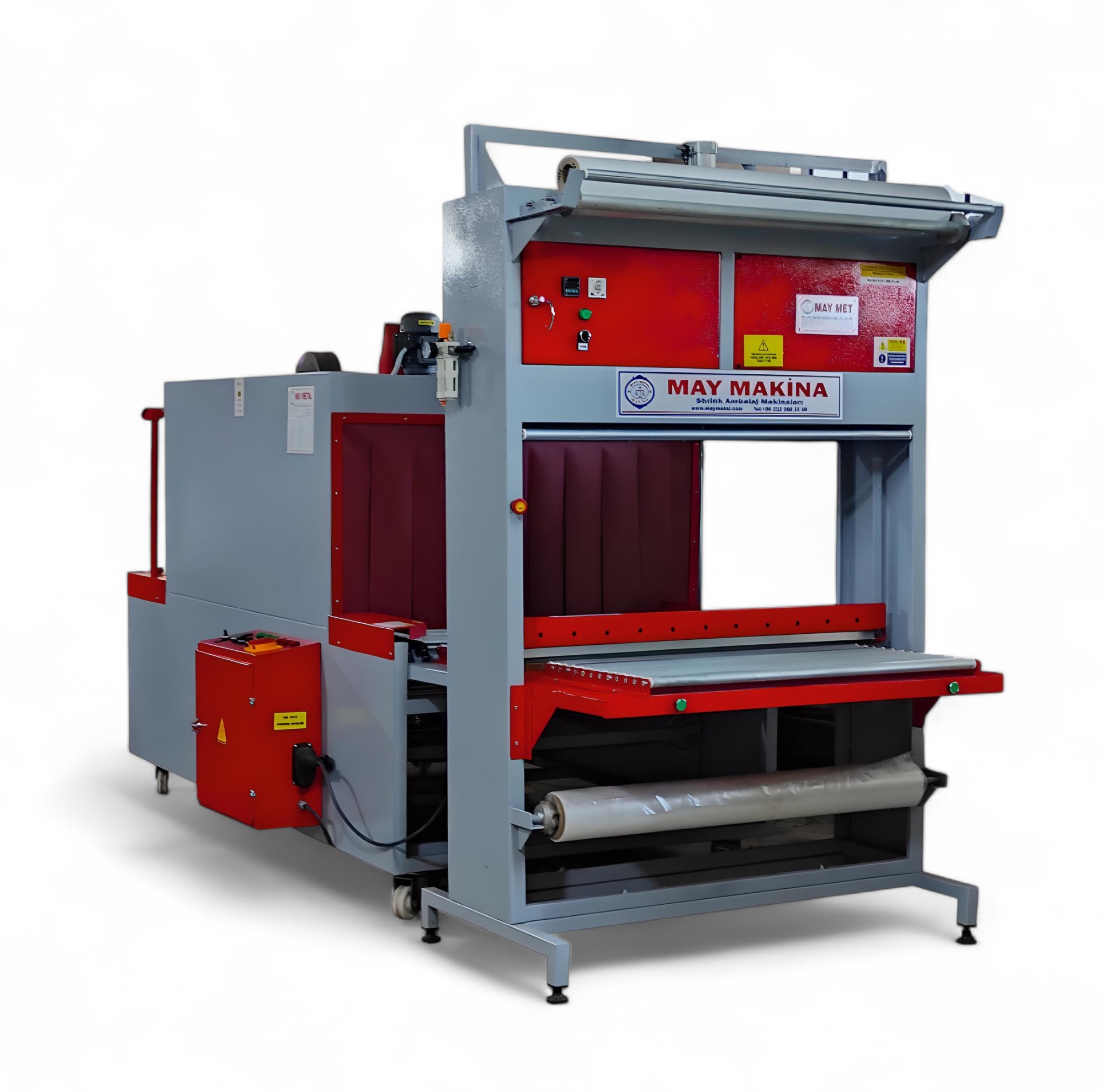

SEMI-AUTOMATIC SHRINK PACKAGING MACHINE

60 x 110

Tunnel Conveyor speed adjustment is driver supported.
Mono block all metal chassis
Galvanized coated shaft carrier conveyor with American Rombo chain
Speed ​​adjustment on tunnel conveyor
Digitally controlled teflon coating Hot knife cutting and bonding
It is provided with a PID heat control system with a Digital Display.
Double row silicone curtains at tunnel entrances and exits
Thermal insulation with aluminum foil coated rock wool min. heat loss
asy and quick film change
Double-braced wheels for easy transport
Emergency Stop Emergency button
Easy installation and simple use
Production efficiency and robust package quality
Production in accordance with CE standards
1 year warranty excluding wear parts
10 Years spare parts supplier
Turbo homogeneous blowing shrink stretching heat tunnel providing high energy saving (It provides efficient use of the heated hot air in the tunnel by recirculating it over the resistances.)
304 Quality Stainless steel pipe resistance (Ø) 11.5
Insulation 110 density Rock wool with aluminum foil
Nickel bar Silicone +(Ø) 6 Glass fiber protected oven resistance cable feeds
Shrink tunnel conveyor carrier Ø 14 mm galvanized coated shaft
Idler oscillation special ball gear system
Control: Digital double line display Heat Thermostat + Analog timer control
Paint Washable Electrostatic Oven Powder Paint
Double row special fireproof silicone curtains at tunnel entrances and exits
Hot Sewing: Pressure adjustable special Industrial Henkel ceramic teflon coated 7075 quality digital thermostat controlled aluminum hot jaw
Product cooling fast stretching / Shrink tunnel outlet Snail cooling fan 650 Flow (m³/h)
360 degree rotatable locking wheel
Double start button and Double emergency stop button (work safety requirement)
We produce machines in the desired width, height and length to suit your business and purpose.

Technical Specifications

TUNNEL DIMENSIONS
1100mm / 600mm / 1500mm
CAPACITY 6/8 ppm
ELECTRICAL SUPPLY 380 V – 3 Ph, 50-60 Hz
MAXIMUM POWER 22 kW
AVERAGE POWER 4/6 kW/h
OPERATING PRESSURE 5/8 bar
SEALING JAW LENGTH 1130 mm 7075 Quality Teflon-Coated Aluminum Heated Jaw
SHRINK TUNNEL TEMPERATURE CONTROL 0-50-250°C
MAX. FILM THICKNESS 0.40-200 microns
MAX. ROLL WIDTH 1100 mm
SUITABLE FILM PE Polyethylene
MACHINE WEIGHT 750 kg Mobile Type in Two Units
