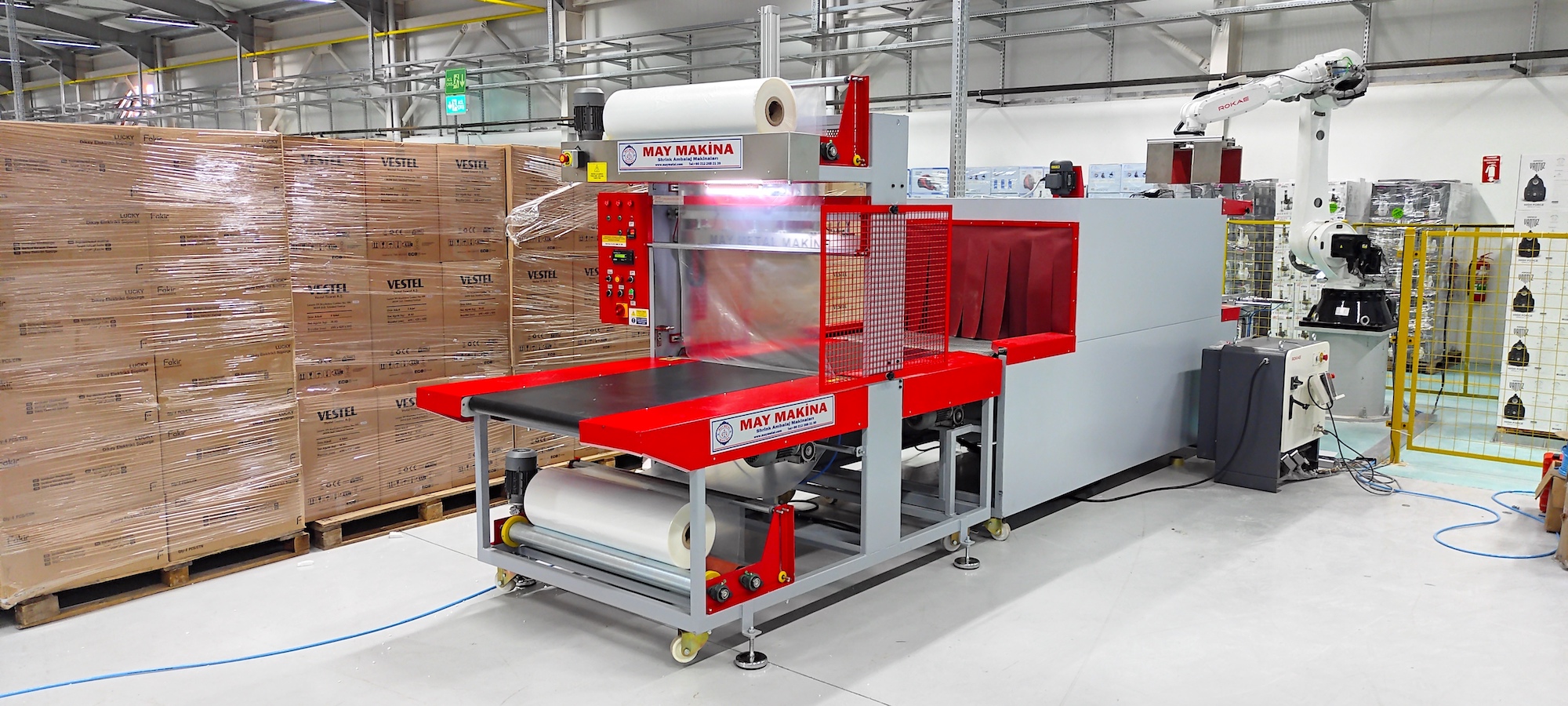

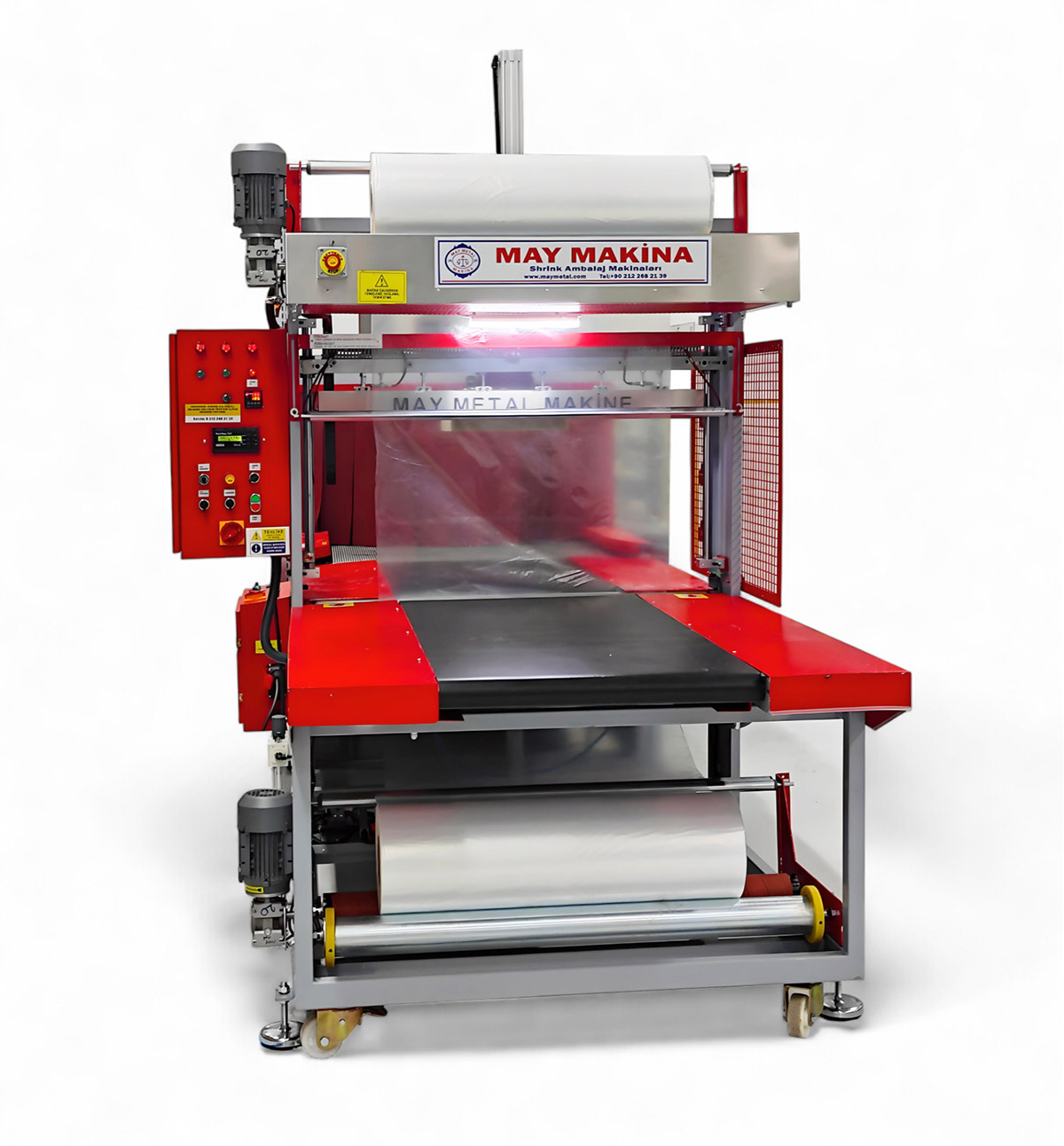

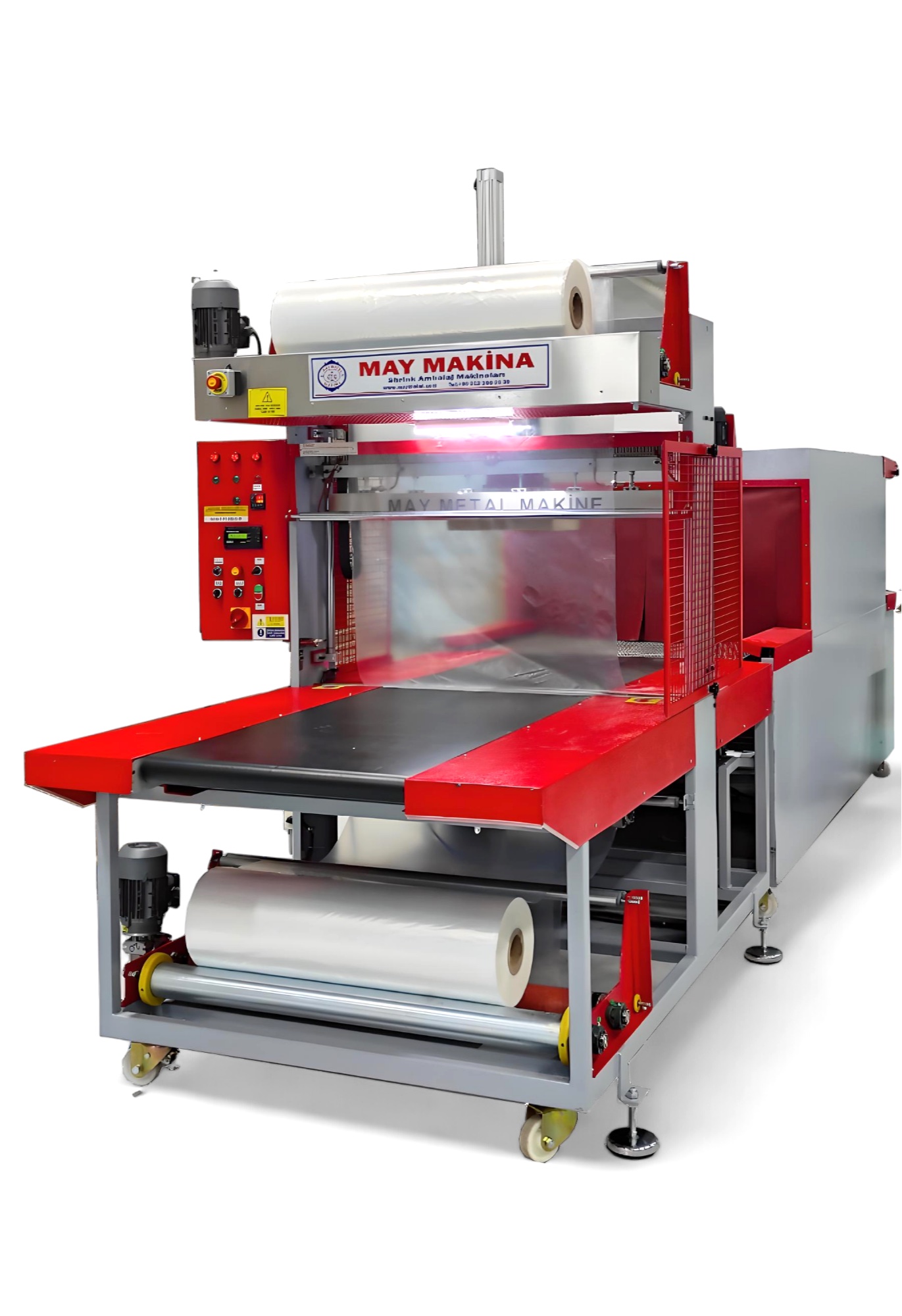

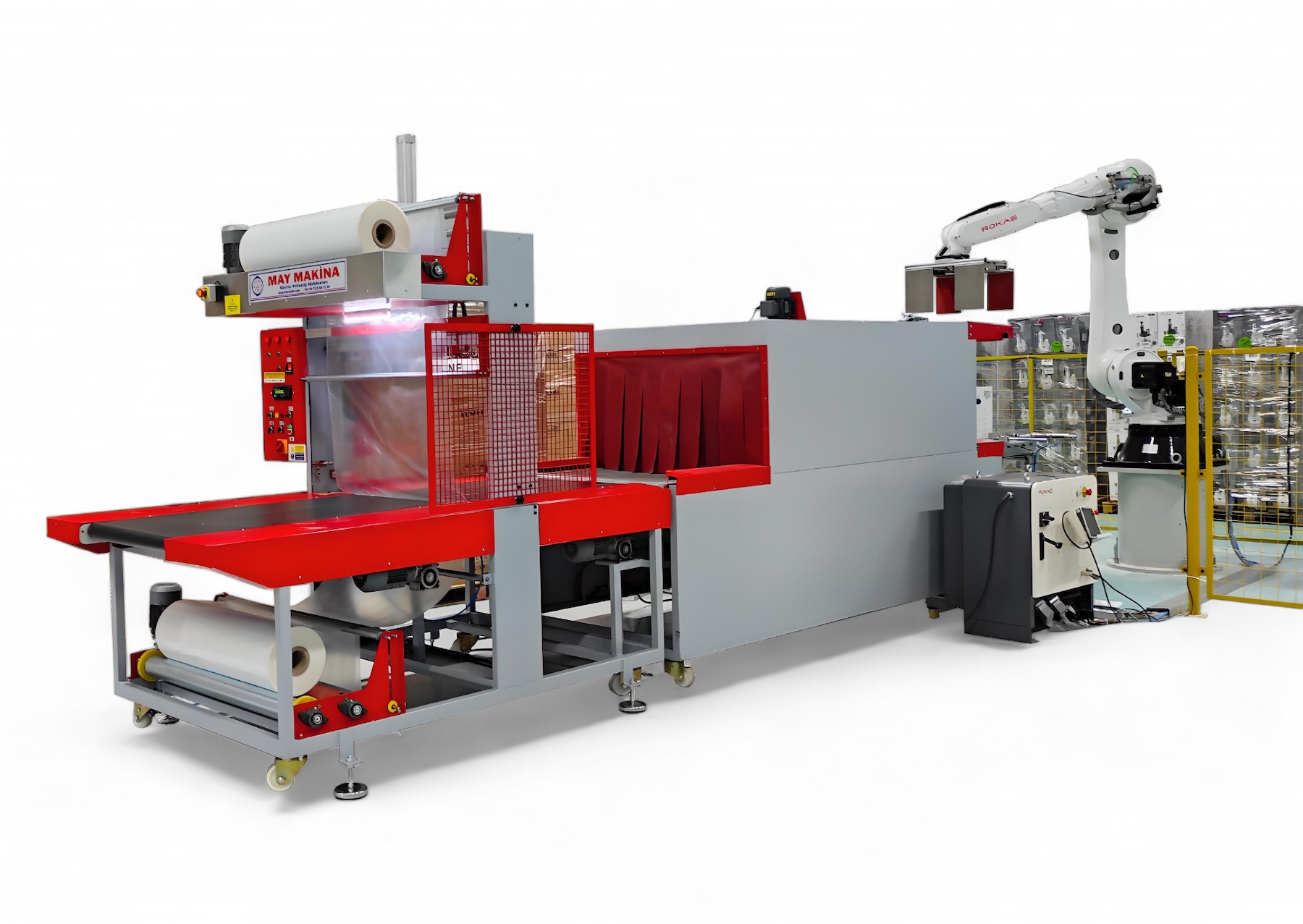

FRONT FEED FULLY AUTOMATIC SHRINK MACHINE

M.O.PE 60X110

With its Side Feeding Fully automatic shrink machine that saves work space with its right or left feeding and grouping options, it groups and packages glass, plastic, metal bottles and liquid containers, canned and jar-shaped products such as single or grouped products in the desired format, making your products ready for shipment by facilitating their transportation and stacking.

Products packaged with Side Feeding or Grouping automatic shrink packaging machine options stand out with product safety and durability in the sectors they are used.

It can be used in many sectors, especially in food, cube sugar, boxed and unboxed products, beverages, cosmetics, chemicals and medical, printing, electrical appliances, textiles, etc.

Our company, which will provide the best support you need in the shrink machines we design for your products with different sizes and dimensions, continues to guide you in packaging solutions.

Easy to use and comes in sturdy packaging
Turbo system axial propeller tunnel system
4-Way Tunnel Turbo Blowing System
Speed ​​and time adjustable pneumatic product pusher and adjustable waste margin steering mechanism
Tension controlled sensor controlled tension upper and lower motorized film opening system
Cooling 650 Db fan at tunnel exit
Product holder system with sensor-controlled automatic detection of product size during film wrapping
Pneumatic shrink cutting and sealing knife with linear bearing pressure adjustment
Product feeding conveyors PVC or NODULAR belt system (Can be changed if preferred)
7075 Quality aluminum industrial ceramic teflon coated hot knife cutting and bonding
5.7” color touch PLC or LOGO control panel (preferably changeable)
Main body Steel chassis
Speed ​​adjustment on tunnel and product feeding conveyor
Inner tunnel conveyor silicone coated shaft or woven wire galvanized coated wire conveyor
Hand protection sensors for product and work safety purposes
Hand protection sensors for product and work safety purposes
Easily accessible Emergency stop buttons at different points
Low power consumption with turbo homogeneous tunnel system
Double row silicone fireproof curtains at tunnel entrances and exits
UPS Power supply support against power outages (Optional)
1 year warranty excluding wear parts
5 years spare parts supply and technical support warranty

Technicial Specifications

TUNNEL DIMENSIONS (Width-Height) 1100mm / 600mm / 1800mm
CAPACITY 8-14 ppm
ELECTRIC SUPPLY 380 V – 3 Ph, 50-60 Hz
MAXIMUM POWER 24 kW
AVERAGE POWER 4/7 kW/h
WORKING PRESSURE 5/8 bar
STICKING JAW LENGTH 1130 mm, 7075 Quality Teflon Coated Aluminum Hot Jaw
SHRINK TUNNEL HEAT SETTING 0-50-250°C
MAX. FILM THICKNESS 0.40-200 micron
MAX. ROLL WIDTH 1100 mm
SUITABLE FILM PE Polyethylene/Polyethylene
MACHINE WEIGHT 750 kg, Mobile Type as Two Units
