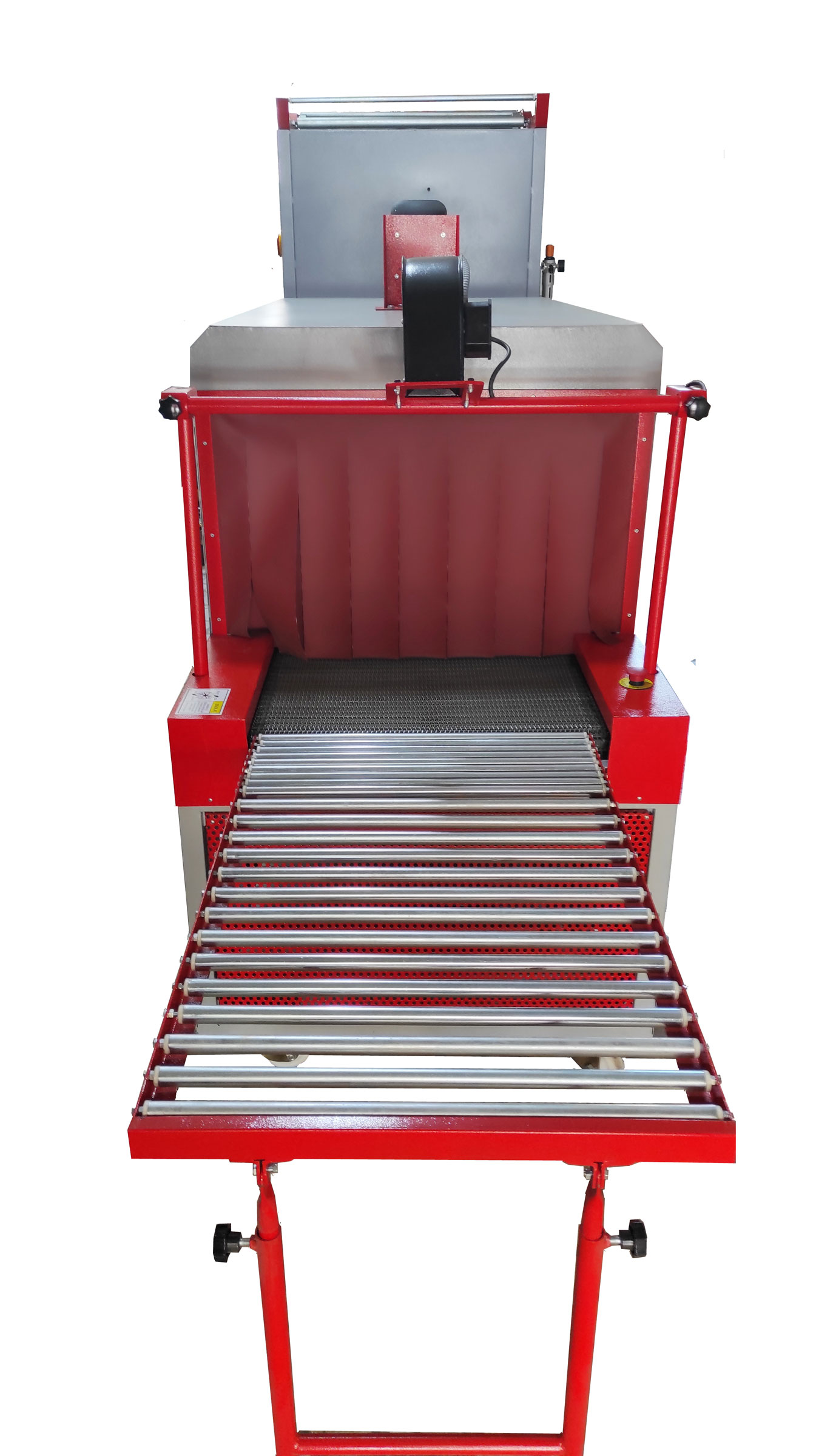

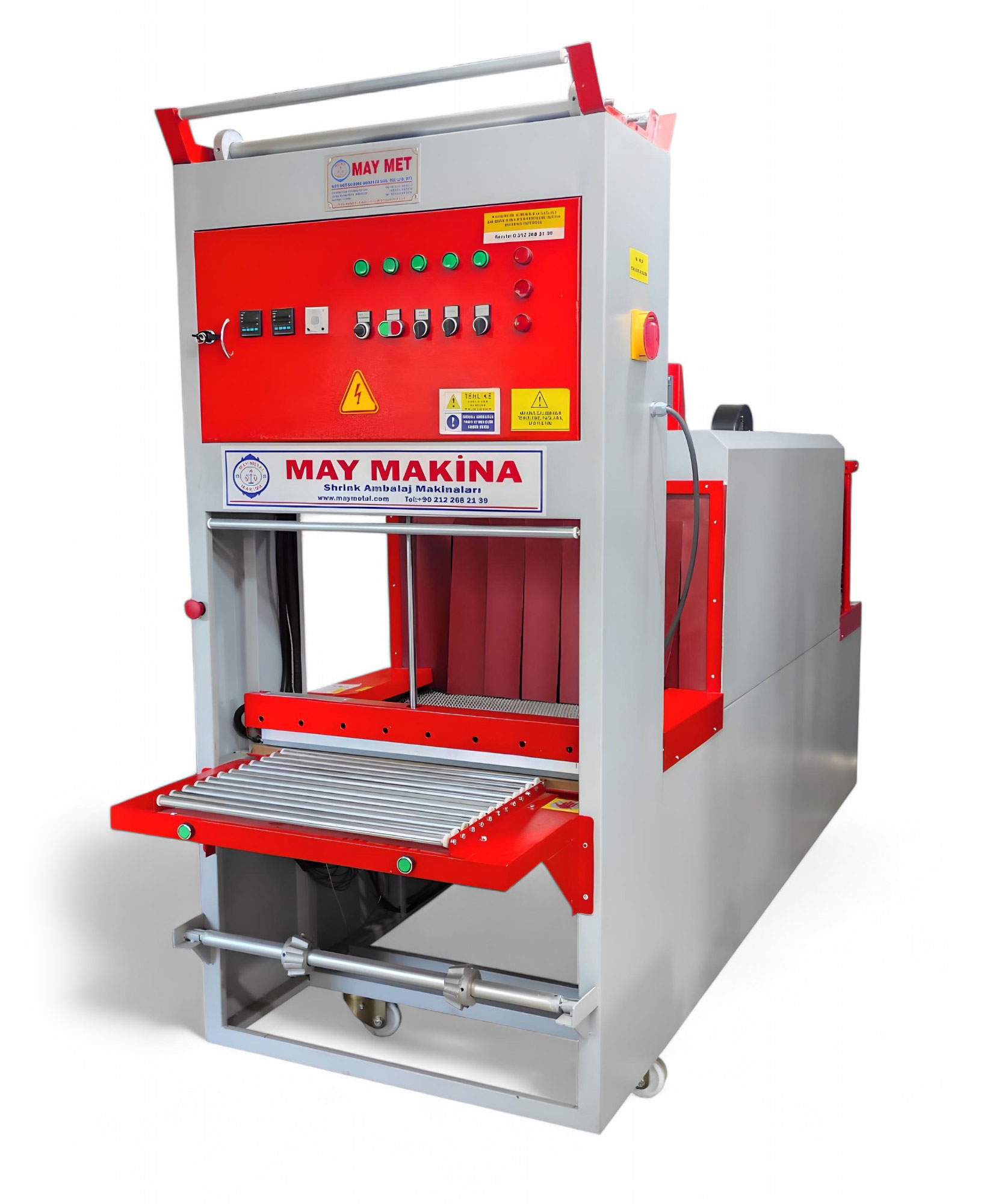

Our MPE 50 x 70 series shrink machine, which has a very simple operation, provides easy, strong and safe packaging of box type products including single or cardboard tray and base products made of various materials such as Metal, Glass and Plastic bottles, Wood and Paper Cardboard, and meets your shrink packaging needs in Printing, Furniture, Food, Cosmetics, Chemistry, Medical, Paint, Automotive spare parts, Electrical household appliances, White goods, Stationery, Cable, Electrical materials, Printing and various sectors.
Use and Maintenance
In our machine where the single user operator can work, the products are manually placed on the idle conveyor, manually driven into the cutting and sealing unit area and the time-controlled start button is pressed to close the shrink film, then the new product driven with the same process drives the previous product into the shrink heat tunnel.
TUNNEL DIMENSIONS |
500 x 700 x 1500 mm |
MAXIMUM PACKAGING DIMENSIONS |
Height: 400 x Width: 600 x Length: 700 mm |
CAPACITY | 6/8 ppm |
ELECTRIC SUPPLY | 380 V – 3 Ph, 50-60 Hz |
MAXIMUM POWER | 18 kW |
AVERAGE POWER | 3/5 kW/h |
AIR CONSUMPTION |
100 L/min |
WORKING PRESSURE | 5/6 bar |
SEALING JAW LENGTH | 730 mm. 7075 Quality Teflon Coated Aluminum Hot Jaw |
SEALING TIME SETTING |
0-3 sec. |
SHRINK TUNNEL TEMPERATURE SETTING | 0-50-250°C |
MAX. FILM THICKNESS | 0.50-170 micron |
MAX. ROLL WIDTH | 700 mm |
SUITABLE FILM | PE Polyethylene |
TOTAL MACHINE DIMENSIONS |
Total 3600 mm |
MACHINE WEIGHT | 450 kg |
